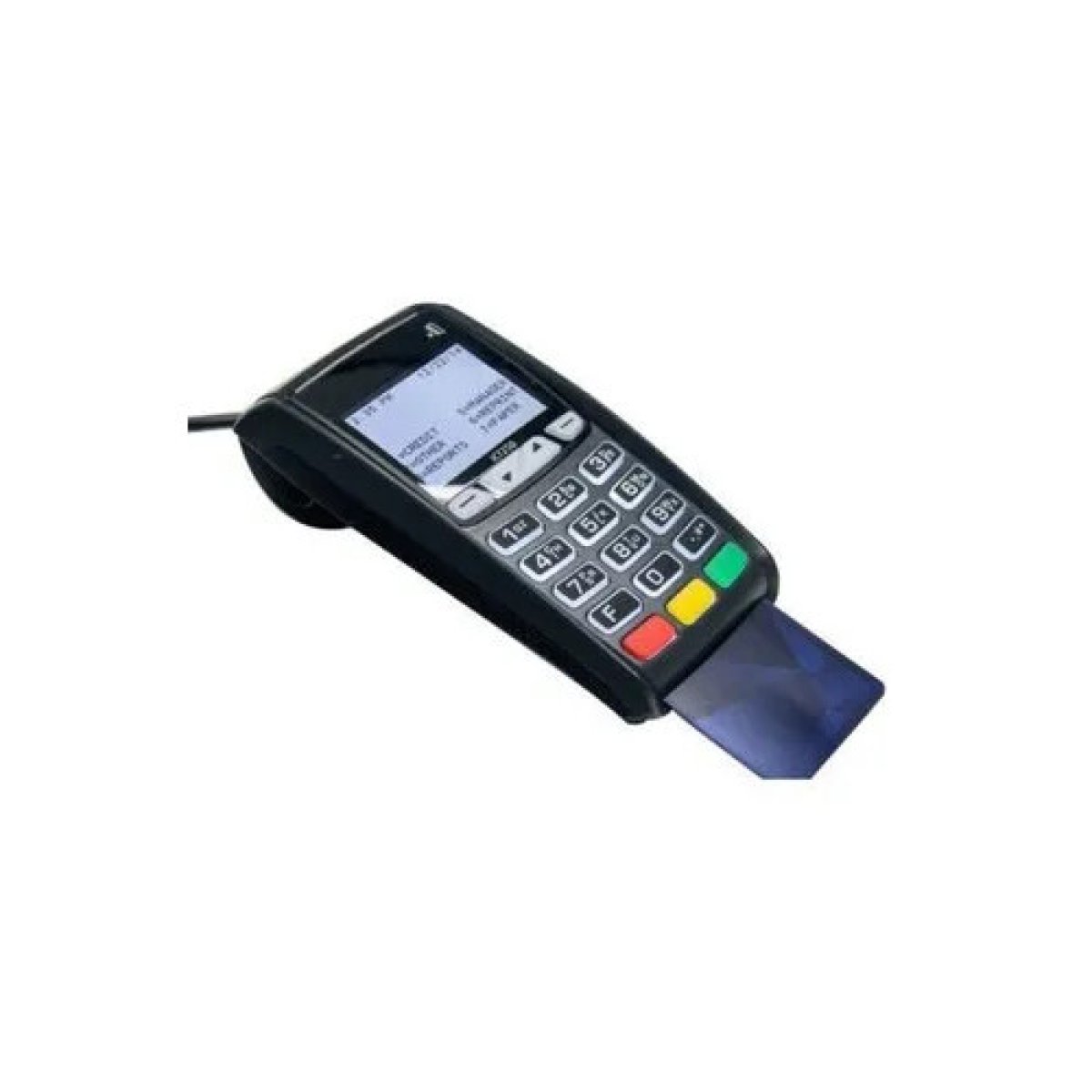

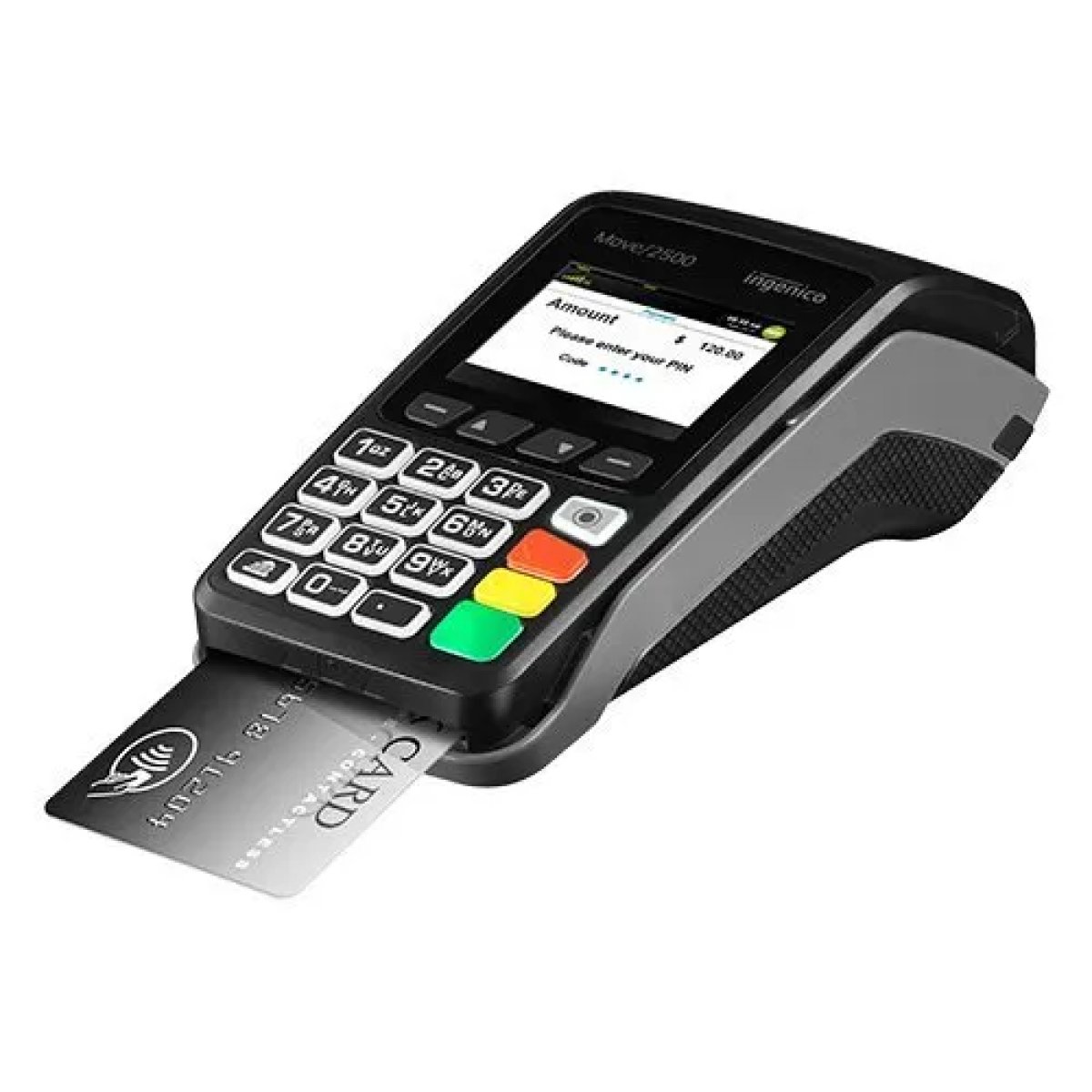

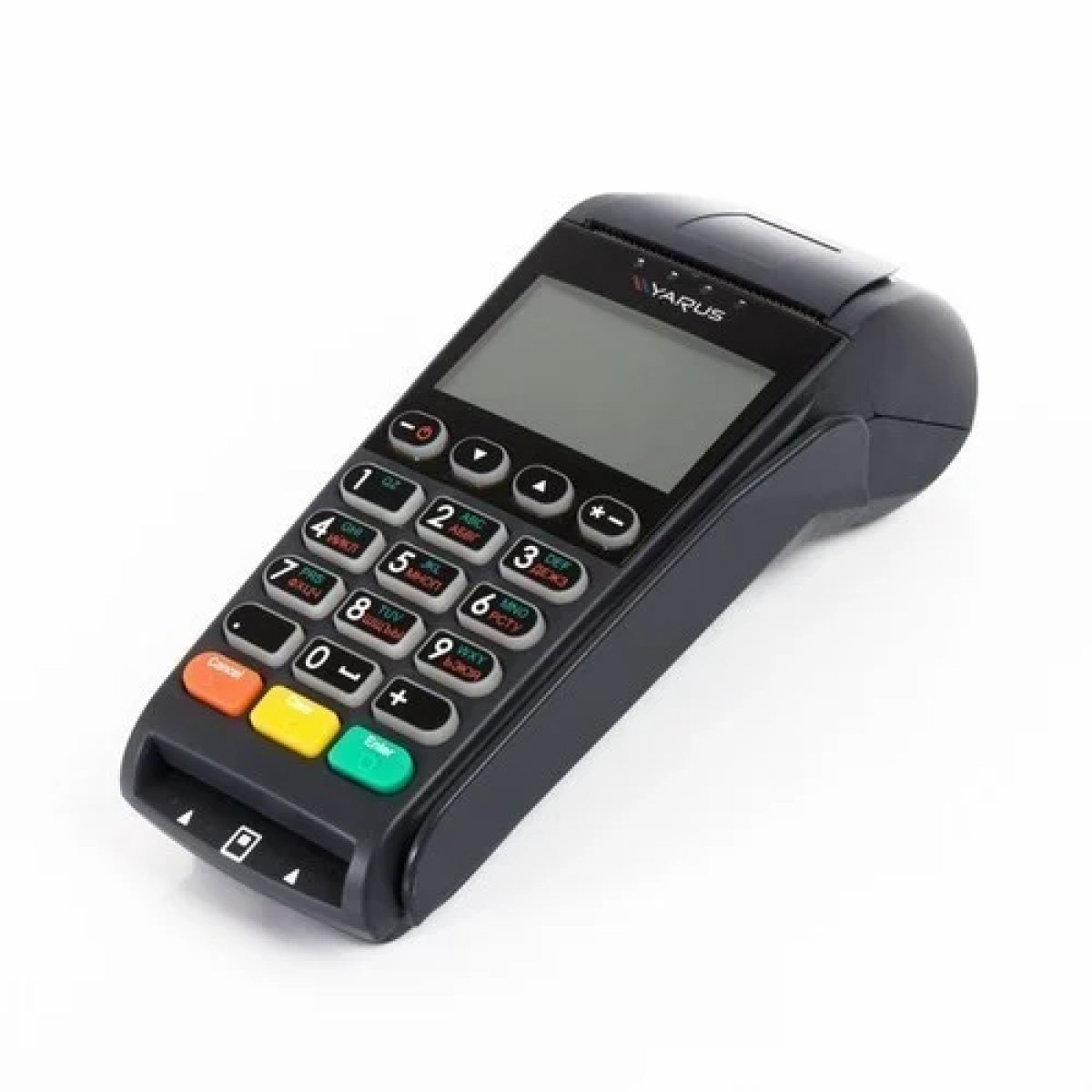

Semi-Integrated PCI-Compliant Smart POS Terminal An enterprise-grade countertop payment terminal engineered to process magnetic stripe, EMV chip, and contactless (NFC) transactions via a secure, semi-integrated network topology. By decoupling sensitive cardholder data processing from the primary electronic cash register (ECR) software, this Android-based smart terminal reduces PCI-DSS compliance scope, handles real-time end-to-end encryption (E2EE), and pushes instantaneous payment verification back to the merchant's checkout node over local IP networks.
Mitigating Data Liability via Network Disintegration
In legacy retail setups, the Point of Sale terminal operated in a fully integrated configuration: the cash register computer captured card numbers directly, passing them through local PC memory before shipping them to the bank. This method exposed the primary store computer to immense liability, making it a high-value target for hackers and forcing retailers to undergo exhausting, expensive PCI-DSS compliance audits across their entire IT network. A Semi-Integrated / Semi-Automatic POS Machine resolves this liability bottleneck by physically and logically splitting the checkout flow down the middle.
The merchant's electronic cash register handles everything related to inventory control, sales tax, item scanning, and receipt printing. It captures no card data whatsoever. When a customer is ready to pay, the register sends a basic command string (containing only the dollar amount and a transaction ID) over a local network connection—such as an Ethernet cable, Wi-Fi link, or serial line—to the standalone POS terminal.
The customer then interacts exclusively with the isolated transaction device. The device powers its internal EMV chip slot or NFC reader, securely tokenizes the payment data, and manages authorization through its own secure cellular or internet pipeline directly to the bank. Once the transaction completes, it returns a simple "Approved" or "Declined" confirmation token back to the merchant register, triggering the cash drawer to pop and closing out the sale with minimal data risk to the shop's core computer network.
Key Performance Features
Drastic PCI Scope Minimization: Isolates all primary cardholder data inside a dedicated, hardened hardware security module (HSM). This keeps the merchant’s computer network entirely out of scope for complex PCI data security audits.
Universal Multi-Payment Trajectory: Built-in multi-sensor hardware accommodating standard contact EMV chip cards, traditional magnetic swipe tracks, and high-speed NFC Contactless interfaces (supporting Apple Pay, Google Wallet, and Tap-to-Pay credit cards).
High-Performance Smart OS Core: Powered by a secure, customized Android operating system that supports value-added merchant applications, including digital on-screen signature capture, dynamic tipping, and QR-code mobile wallet scanning.
Dynamic End-to-End Encryption (E2EE): Instantly encrypts card data at the exact point of contact using industry-standard TR-31/DUKPT key management architectures, rendering captured data useless if the line wire is sniffed.
Robust Failover Network Routing: Equipped with multi-channel network failovers, seamlessly switching between 4G LTE cellular data back-ups, high-speed Wi-Fi, and hardwired Ethernet loops to guarantee uninterrupted checkouts during internet blackouts.
Ideal Infrastructure Applications
High-Volume Grocery & Retail Supermarkets: Speeding up checkout lanes while protecting corporate servers from regional malware threats.
Fine Dining & Fast-Casual Restaurants: Passing transaction data cleanly from table-side tablets or fixed kitchen management systems straight to guest-facing checkout pads.
Hospitality Desk Front Counters: Processing room deposits and card-present upgrades without exposing internal hotel management software to raw credit card numbers.
Technical Performance MatrixEngineering Metric ParameterSmart Android Semi-Integrated POS Machine ProfileOperating System PlatformHardened Android Security Operating SystemCore Computing ProcessorHigh-Performance 32-bit ARM Quad-Core CPU CoreCard Reader Modules OnboardTriple-Track Magnetic ISO / EMV Level 1 & 2 / Contactless NFCContactless Range Proximity0 cm to 4 cm (Tap-to-Pay Target Zone)Local Interface ConnectivityRJ-45 Ethernet, Dual-Band Wi-Fi, Bluetooth 4.2/5.0, 4G LTEMerchant Integration APISecure REST SDK / Cloud API / Local TCP-IP Comm StringInternal Thermal PrinterHigh-Speed $2.25"\text{ (57mm)}$ Paper Roll Drop-in (Optional configuration)Data Encryption ArchitectureAES-128 / DUKPT Key Schemes / PCI-PTS 6.x CertifiedCompliance CertificationsEMVCo Co-approved / PCI-PTS 6.x / CE / FCC / RoHSStandard Procurement Package Components
Intelligent Semi-Integrated Smart POS Terminal Machine
High-Efficiency AC-to-DC Regulated Power Supply Charging Brick
Multi-Port Interface Cable Splitter Pigtail (Ethernet / USB / Serial)
Sample High-Speed Thermal Receipt Paper Roll
Merchant Administrative Activation Code and Network Set-up Guide
Optional System Add-ons: Ergonomic Swivel-and-Tilt Countertop Stand Mounts, High-Durability Screen Glare Guards, and Multi-Bay Drop-in Fleet Charging Docks (Sold Separately based on project site BOQ requirements)
