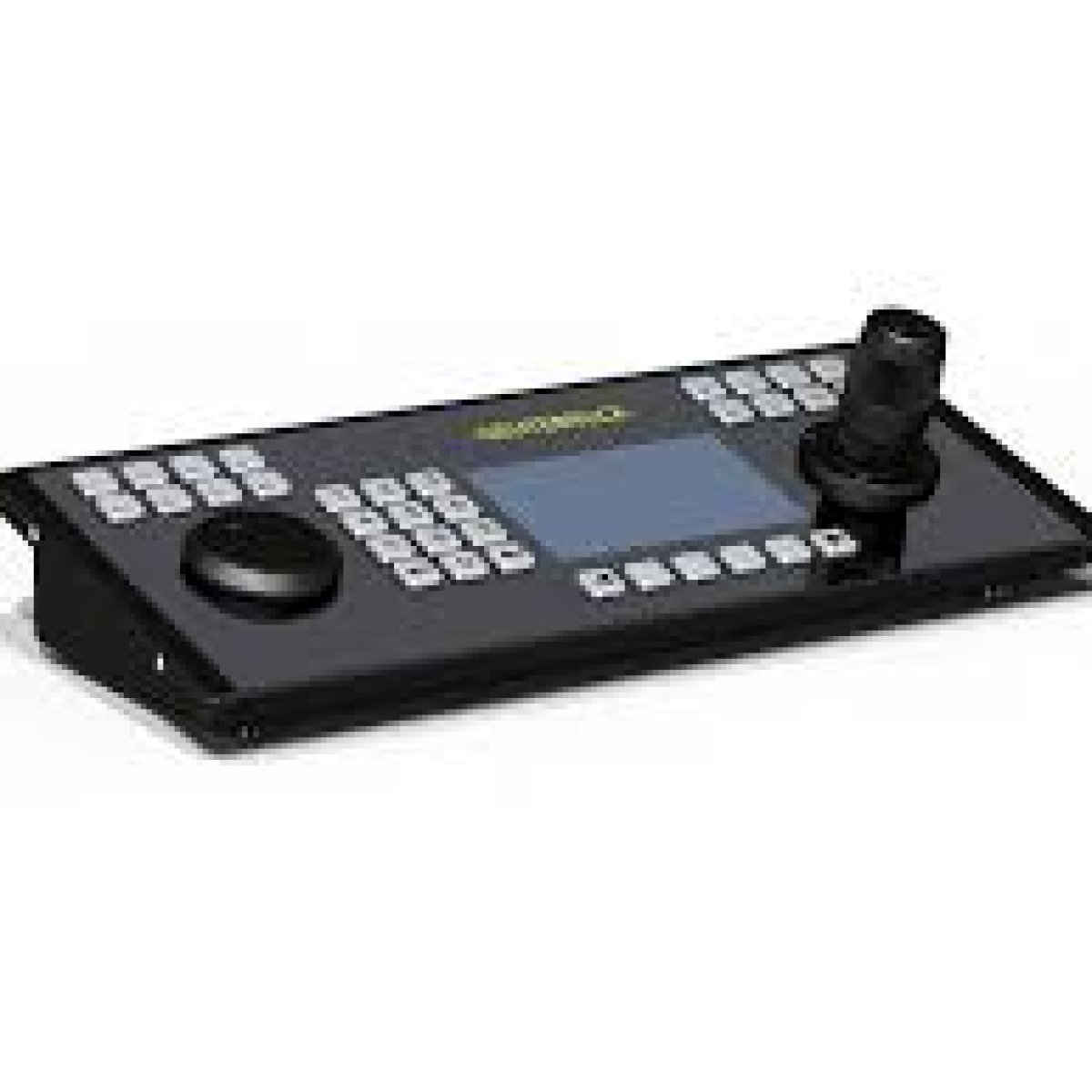

Premium Control Room Joystick and Jog-Shuttle Console for Geutebrück VMS A professional-grade, multi-axis system controller engineered to provide precise, tactile command over high-speed PTZ cameras, live matrix walls, and video playback archives. Featuring a heavy-duty, vector-proportional joystick, a fluid jog-shuttle dial, and an ergonomic array of backlit programmable function keys, this premium USB controller guarantees split-second, low-latency tracking and forensic video analysis for enterprise security control centers.
Precise Tactile Control for Fast-Paced Security Environments
When responding to a perimeter breach or tracking a fast-moving subject across an industrial facility, an operator cannot afford to rely on a standard mouse and keyboard. Split-second movements require hardware-level precision. The Geutebrück MBEG+ is an elite, tactical control console built specifically to put the full command of your Video Management Software (VMS) directly at your fingertips.
Designed for fluid, one-handed navigation, the console pairs a responsive, multi-axis joystick with an intuitive jog-shuttle playback wheel. This allows control room operators to seamlessly transition from sweeping a massive outdoor $360^{\circ}$ perimeter to reviewing archived video frame-by-frame for forensic evidence. Its heavy-duty, commercial-grade chassis is balanced to withstand continuous $24/7$ shift changes while reducing operator fatigue during long monitoring cycles.
Key Performance Features
3-Axis Proportional Hall-Effect Joystick: Delivers smooth, vector-proportional pan, tilt, and zoom movements. Speed scales dynamically based on how far the stick is deflected, allowing for subtle tracking adjustments or rapid $700^{\circ}/\text{sec}$ camera sweeps.
Fluid Jog-Shuttle Wheel Assembly: Engineered for seamless timeline scrub controls. The inner wheel allows for high-precision, frame-by-frame forensic analysis, while the spring-loaded outer ring accelerates high-speed rewind or fast-forward sweeps through recorded footage.
Ergonomic Backlit Keyboard Layout: Outfitted with high-durability mechanical keys dedicated to routine command functions—such as camera switching, preset callouts, alarm clears, and matrix wall routing—backlit for flawless operation in dimmed or darkened control rooms.
Native G-Core and G-SIM Integration: Fully plug-and-play compatible with Geutebrück's advanced software ecosystems, mapping automatically to standard software operations without requiring complex manual button programming.
Universal USB Hub Connectivity: Connects directly to Geutebrück G-VStation+ operator terminals via standard USB, drawing power entirely from the host workstation to eliminate additional external power supplies or messy desktop cables.
Ambidextrous, Heavy-Duty Architecture: Features a robust, low-profile layout with non-slip rubber feet that can be placed on either side of the operator's main keyboard, tailored comfortably for both left and right-handed security staff.
Ideal Control Room Applications
Central Command & Dispatch Centers: Accelerating tracking workflows for security personnel monitoring airports, casinos, and high-security corporate centers.
Critical Infrastructure Perimeter Gates: Allowing gate operators to quickly take manual control of long-range thermal and PTZ cameras (such as the Q62 or Q87 series) to verify perimeter alarms.
Public City Surveillance Desks: Empowering operators to execute rapid tracking sweeps across municipal street intersections and public plazas.
Technical Specifications Quick ReferenceSystem FeatureSpecification ProfileInterface ConnectionUSB 2.0 / USB 3.0 (Type-A Cable Included)Power Supply5V DC via USB Bus (No External Power Supply Required)Joystick Type3-Axis (X/Y for Pan/Tilt, Z-Twist for Zoom) with Top-Button FunctionPlayback ControlConcentric Jog Dial (Inner) and Shuttle Ring (Outer)Software CompatibilityGeutebrück G-Core, G-SIM, and G-View ClientsOperating Temperature$0^{\circ}\text{C}$ to $+50^{\circ}\text{C}$ ($32^{\circ}\text{F}$ to $122^{\circ}\text{F}$)Enclosure MaterialHigh-Impact Industrial Composite with Metal Core baseWhat's Included in the System Setup
Geutebrück MBEG+ USB Control Console
Heavy-Duty Integrated USB Interface Cable
Pre-Configured Function Key Template Overlay
Technical Operator Installation & Integration Guide
