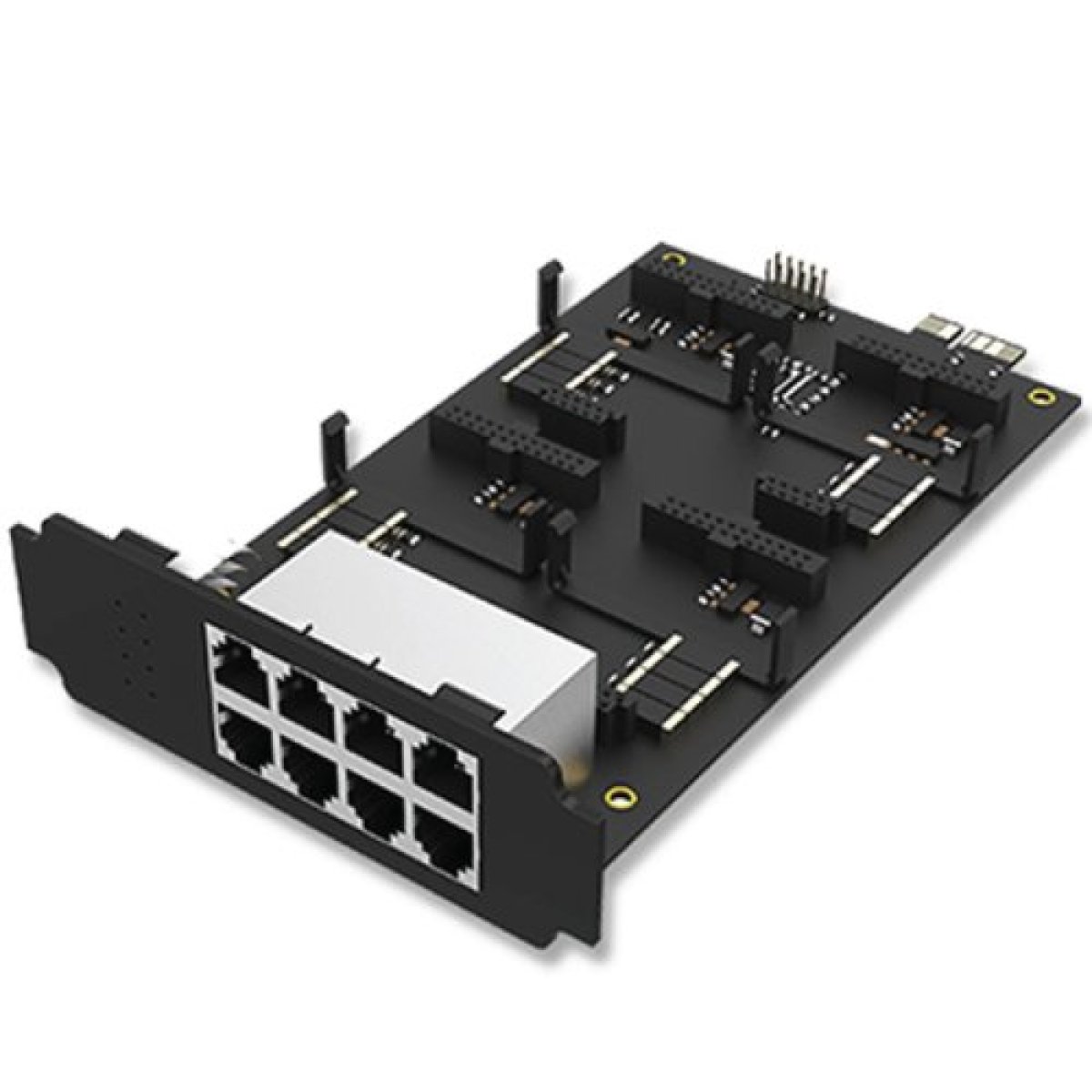

Plug-in Telephony Interface Sub-Module A compact, component-level hardware interface board engineered to snap directly onto a master PBX expansion card or a modular gateway motherboard. Functioning as the primary electrical interface for a small cluster of lines, these sub-modules are available in combinations of FXS, FXO, or ISDN profiles—allowing system engineers to customize the precise port-by-port layout of a telecommunications chassis down to single-digit channel lines.
Fine-Grained Hardware Customization at the Component Layer
While large PBX expansion cards expand system capacity in major batches (such as 16 or 24 ports at a time), deploying them can sometimes result in wasted hardware. For instance, if an office blueprint requires exactly two external utility backup lines (FXO) and two internal analog fax lines (FXS), purchasing a large, dedicated 8-port FXO card along with an 8-port FXS card forces the company to buy unneeded capacity. A PBX Module (or Sub-Card Module) solves this design problem by breaking down the physical line interfaces into tiny, modular blocks that snap directly onto a universal daughterboard layout.

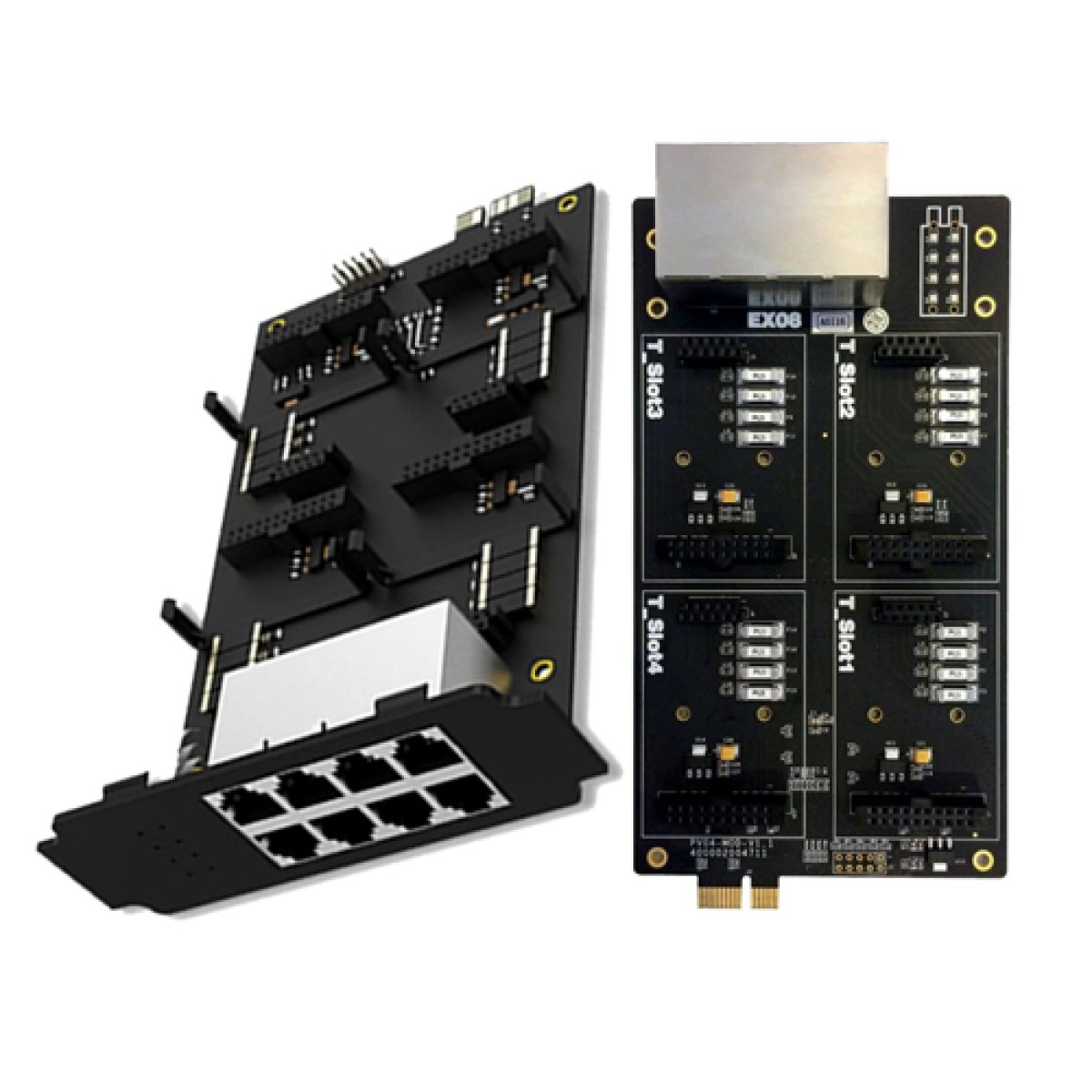

These sub-modules function as localized, hardware-tier electrical adaptors. The universal expansion card acts as a carrier frame, providing data highway routing and power lines from the central server. The small PBX modules snap onto this carrier frame using specialized pins or micro-headers.
Each tiny module contains its own dedicated solid-state relays, voltage surge protection arrays, and specialized microchips tailored to its specific line type. For an FXO module, the board mounts optical coupling chips designed to sense ring voltages from the phone company. For an FXS module, the board mounts a miniature transformer designed to generate local electrical dial tones and ringing power. This layout allows an installer to mix and match line types on a single expansion card slot, tailoring the hardware perfectly to the facility's needs.
Key Performance Features
Port-Level Mixing Flexibility: Allows installers to combine completely different connection styles (like matching FXS and FXO lines) onto a single expansion card slot, optimizing rack layouts and cutting procurement costs.
Granular, Cost-Effective Scalability: Enables facilities to purchase only the exact number of connection lines required immediately, leaving open pins on the carrier board to plug in more modules as the office grows.
Component-Isolated Fault Protection: Every module features built-in transient voltage suppression (TVS) diodes. If a massive lightning spike hits an outdoor copper line, the damage is trapped inside the small, low-cost sub-module, protecting the expensive master PBX server motherboard from frying.
Rapid Field Serviceability: If a specific telephone port fails due to an electrical short on the line, technicians can simply pull the system card out, unplug the single damaged module, and snap in a low-cost replacement without replacing the entire multi-port board.
Ultra-Low Electrical Crosstalk: Engineered with high-density multi-layer shielding that insulates adjacent voice channels from radio frequency interference (RFI) and electronic audio bleed over the shared carrier chassis.
Technical Performance MatrixEngineering Metric ParameterAnalog FXO Sub-ModuleAnalog FXS Sub-ModulePhysical Line Channels2 $\times$ Inbound Channels per Module2 $\times$ Outbound Channels per ModuleInterface Port Form FactorDirect Pin-Header / Carrier BackplaneDirect Pin-Header / Carrier BackplanePrimary Functional LoopReceives line battery & ring voltagesDelivers dial tone, battery, & ring powerLine Signaling ProtocolLoop Start / Ground Start Analog TrunksLoop Start / Ground Start Device ControlLoop Current Draw Limits$20\text{ mA}$ to $60\text{ mA}$ operating capture$20\text{ mA}$ to $35\text{ mA}$ continuous supplyRinger Equivalence Number0.1B REN Load Profile RatingCapable of driving up to 3 or 5 RENSurge Insulation ThresholdUp to $1,500\text{V AC}$ optical isolation protectionSolid-state TVS clamp diode array protectionPhysical Dimensions BaseUltra-compact plug-in blade profileUltra-compact plug-in blade profileCompliance CertificationsFCC Part 68 / CE / RoHS CompliantCE / FCC Approved / Hearing Aid CompatibleStandard Procurement Package Components
Precision Telephony Interface Plug-in Sub-Module
Anti-Static Component Storage Shroud Packaging
Factory Continuity Testing Quality Control Pass Tag
Mounting Guide detailing pin alignments and carrier slot maps
Required System Add-ons: Universal Modular PBX Carrier Expansion Boards, Main PBX Appliance Hosting Servers, and External RJ-11 Data Line Patch Leads (Sold Separately based on project site BOQ layout requirements)
