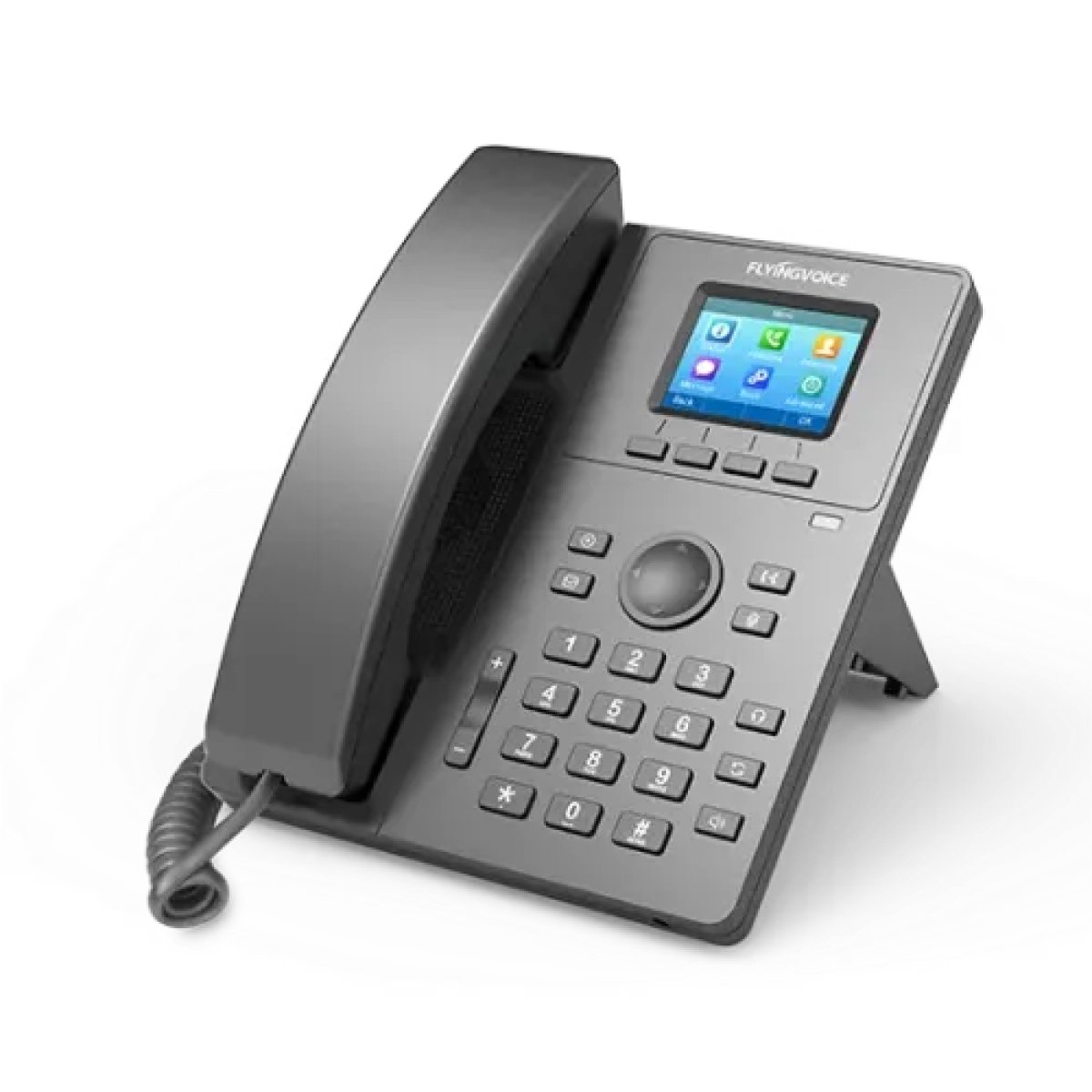

IP Desktop Phone with PoE & HD Voice

Migrating the Desktop Endpoint to the Local Data Network Matrix

In legacy commercial office setups, desk phones were simple, passive analog devices that required a completely separate network of physical copper telephone wiring (Cat3 tip-and-ring lines) run alongside the computer network cables. An IP Phone (Internet Protocol Phone) completely eliminates this redundant physical infrastructure. It acts as an independent, active computing node on the facility's Local Area Network (LAN), converting acoustic voice waves into digitized data packets that share the exact same structured Cat6 Ethernet cabling used by workstation computers.

The internal architecture of a modern IP phone features an onboard digital signal processor (DSP) and an ethernet switch core. The device uses standard Session Initiation Protocol (SIP) to register its unique IP address with a local or cloud-hosted PBX server.

When a user speaks into the handset, the high-definition microphone element captures the analog audio waves. The internal DSP immediately compresses this audio stream into digital data packets using advanced mathematical voice codecs (such as uncompressed G.711 or high-definition, bandwidth-efficient Opus).

These packets are stamped with real-time transport protocol (RTP) headers and injected onto the data network with strict Quality of Service (QoS) prioritization tags, ensuring they bypass standard internet traffic and arrive at their destination without delay or audio clipping.

Strategic Functional Topologies

To maximize workplace efficiency and reduce cable drop installation costs at the desk line, IP phones utilize a smart hardware pass-through design:

1. Integrated Dual-Port Gigabit Daisy-Chaining

• Single-Cable Workstation Deployment: The IP phone features two distinct RJ-45 network ports on its rear panel (a "LAN" input port and a "PC" output port).

• The Cable-Saving Loop: System installers run a single Cat6 data cable from the wall outlet straight into the phone's LAN port. A second, short patch cable is then run from the phone's PC port directly into the user's desktop computer. This architecture allows the phone and the computer to cleanly share a single physical wall drop without sacrificing network speeds.

2. Native Power over Ethernet (PoE) Elimination

• Zero AC Outlets Required: The phone draws its operational DC current directly over the network cable from a centralized PoE switch in the IT closet. This eliminates the need for individual plastic AC power adapters taking up wall outlets under every desk, drastically reducing cable clutter and simplifying building power backups.

Key Performance Features

• High-Definition (HD) Acoustic Clarity: Engineered with premium hardware audio cavities, full-duplex acoustic echo cancellation, and native support for wideband audio codecs (like G.722), offering a vastly superior frequency range compared to legacy analog phone lines.

• Programmable Context-Sensitive Keys: Features a matrix of programmable line and busy lamp field (BLF) keys with digital on-screen labels, allowing users to monitor colleague extension statuses and execute single-touch transfers.

• Secure Cryptographic Signaling: Natively supports Transport Layer Security (TLS) and Secure Real-time Transport Protocol (SRTP) encryption standards, blocking unauthorized third parties from eavesdropping on or wire-tapping call data streams across the network.

• Centralized Automated Provisioning: Supports FTP, TFTP, HTTP, and HTTPS mass configuration protocols. IT managers can unpack hundreds of phones, plug them into the network, and have them automatically fetch their extension numbers and firmware settings from a central server without touching a single button.

• Integrated Electronic Hookswitch (EHS) & Bluetooth: Supports direct electronic pairing with professional wireless headsets, allowing office workers to answer and end calls remotely from their headsets while moving around the office floor.

Ideal Infrastructure Applications

• Commercial Executive Office Workstations: Providing multi-line call handling, speed dials, and dedicated corporate directory lookups for administrative staff.

• High-Density Call Center Environments: Interfacing with operator headsets, automatic call distribution (ACD) queues, and table-side hot-desking login routines.

• Common Areas, Hallways, & Hospitality Suites: Deployed as wall-mounted, low-maintenance nodes in elevator lobbies, manufacturing floors, and hotel guestrooms.

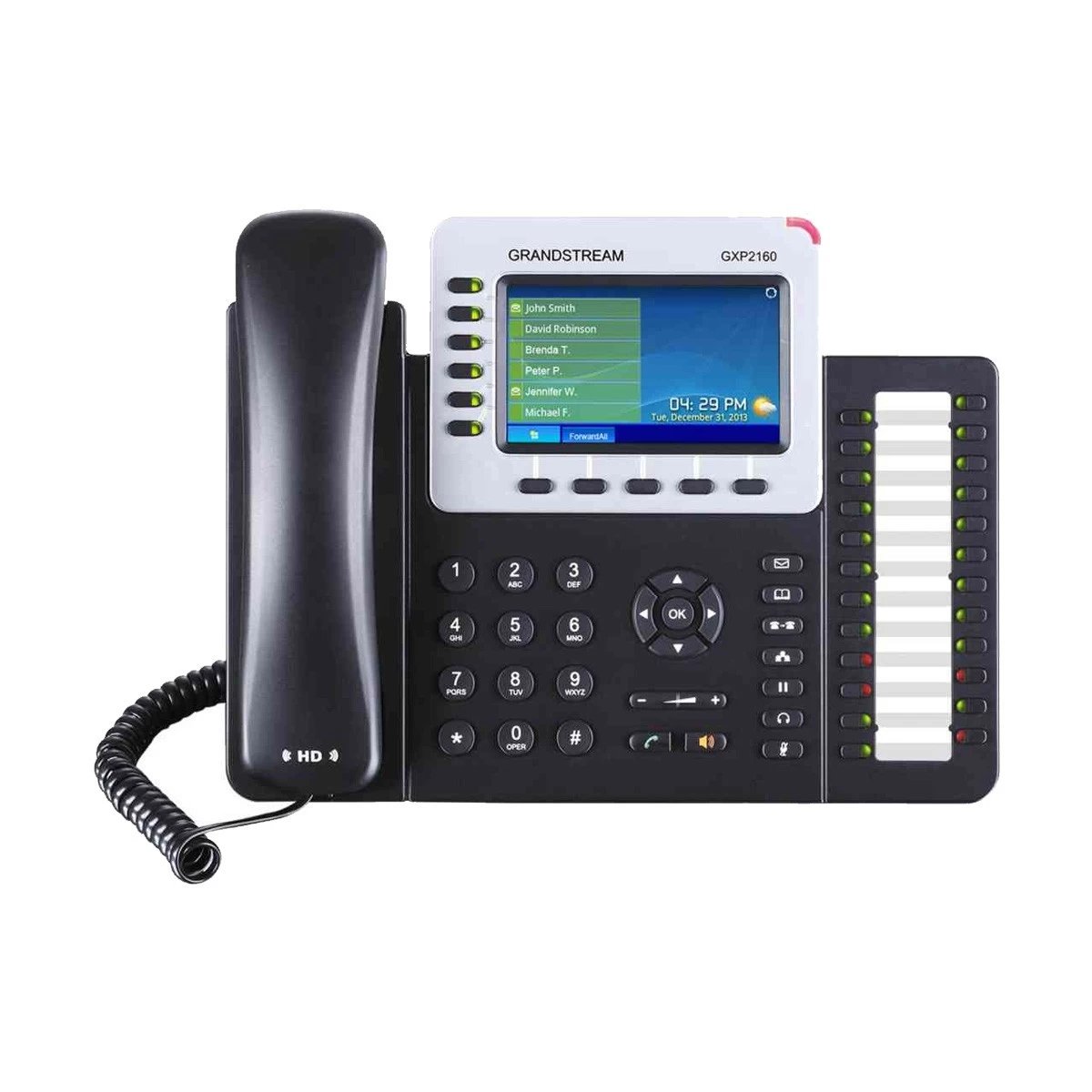

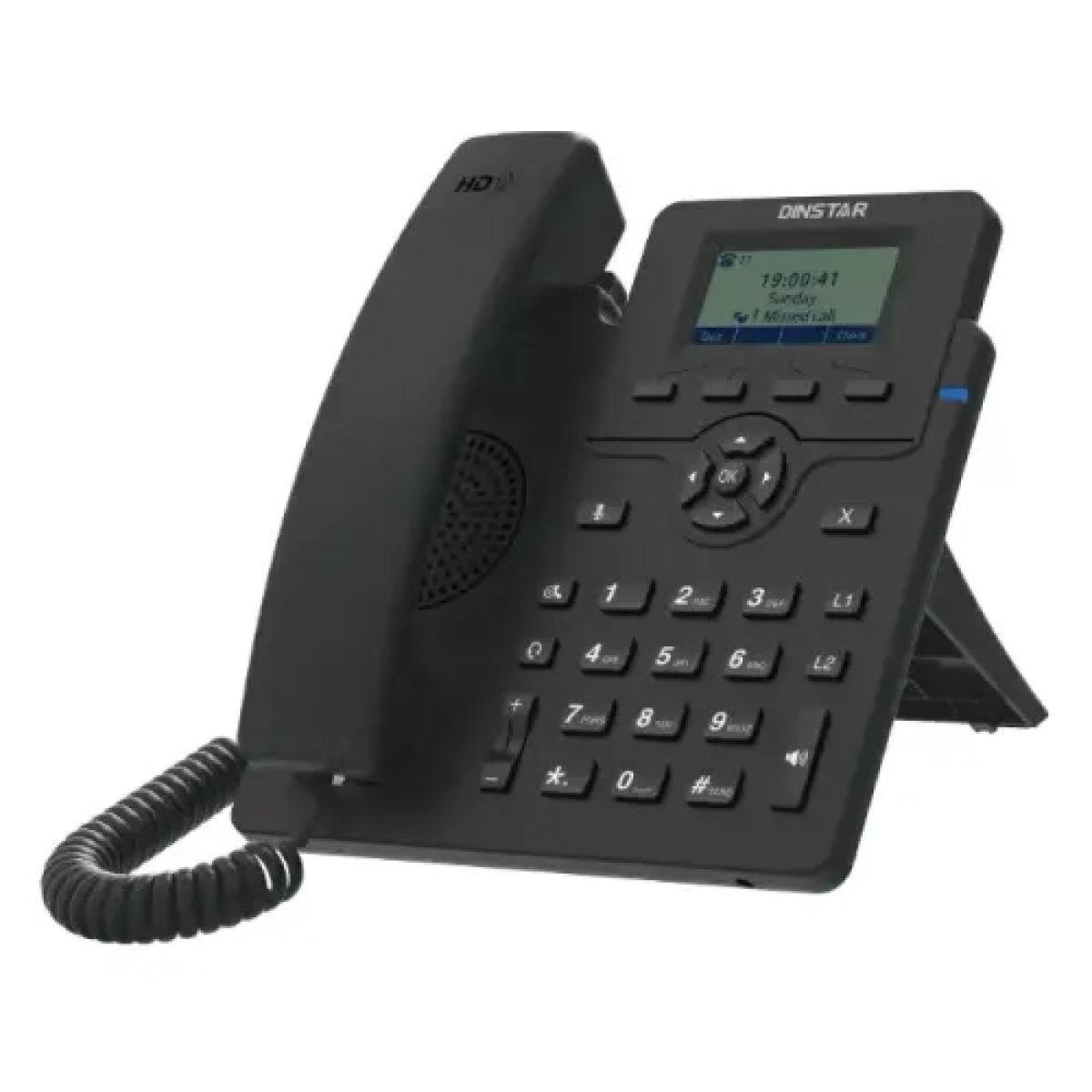

Technical Performance MatrixEngineering Metric ParameterExecutive Color Gigabit IP PhoneStandard Business IP PhoneSIP Line / Account CapacitiesUp to 12 to 16 Independent SIP AccountsUp to 2 to 4 SIP Accounts MaxPrimary Physical Display Screen4.3-Inch Backlit TFT Color Display2.3-Inch Graphical LCD DisplayNetwork Interface Ports Built-in2 $\times$ 10/100/1000M Gigabit RJ-452 $\times$ 10/100M Fast Ethernet RJ-45Power Input Protocols SupportedPoE (IEEE 802.3af Class 2 or 3) / 5V DCPoE (IEEE 802.3af Class 1 or 2) / 5V DCAcoustic Audio PerformanceHD Wideband Voice Handset & SpeakerStandard Wideband Handset / Narrowband SpeakerCore Voice Codec StackOpus, G.722, G.711 (A/μ), G.729AB, G.726G.722, G.711 (A/μ), G.729AB, G.726Wireless Peripheral SupportIntegrated Bluetooth & EHS PortEHS Headset Port Interface OnlyNetwork Security ImplementationsTLS, SRTP Encryption, HTTPS, 802.1XTLS, SRTP, HTTPS Security ProtocolsHardware Housing FrameHigh-Impact ABS / Antimicrobial OptionHigh-Impact ABS ThermoplasticCompliance CertificationsCE / FCC / RoHS / UL 62368-1 CertifiedCE / FCC ApprovedStandard Procurement Package Components

• Enterprise IP Desktop Phone Main Console Base Unit

• High-Definition Audio Handset and Heavy-Duty Coiled Handset Cord

• Multi-Angle Ergonomic Desk Stand Foot-Pedal / Wall-Mount Bracket Adaptor

• Category 6 RJ-45 Ethernet Patch Cable ($2\text{ meter / }6.5\text{ ft}$)

• Quick-Start Installation Sheet and Factory Network Registration Guide

• Optional System Add-ons: External AC-to-DC Power Adapter Bricks (only required for non-PoE network installations), Attendant Sidecar Expansion Key Modules (for receptionist desks), and Wireless DECT Handset Extensions (Sold Separately based on project site BOQ requirements)
