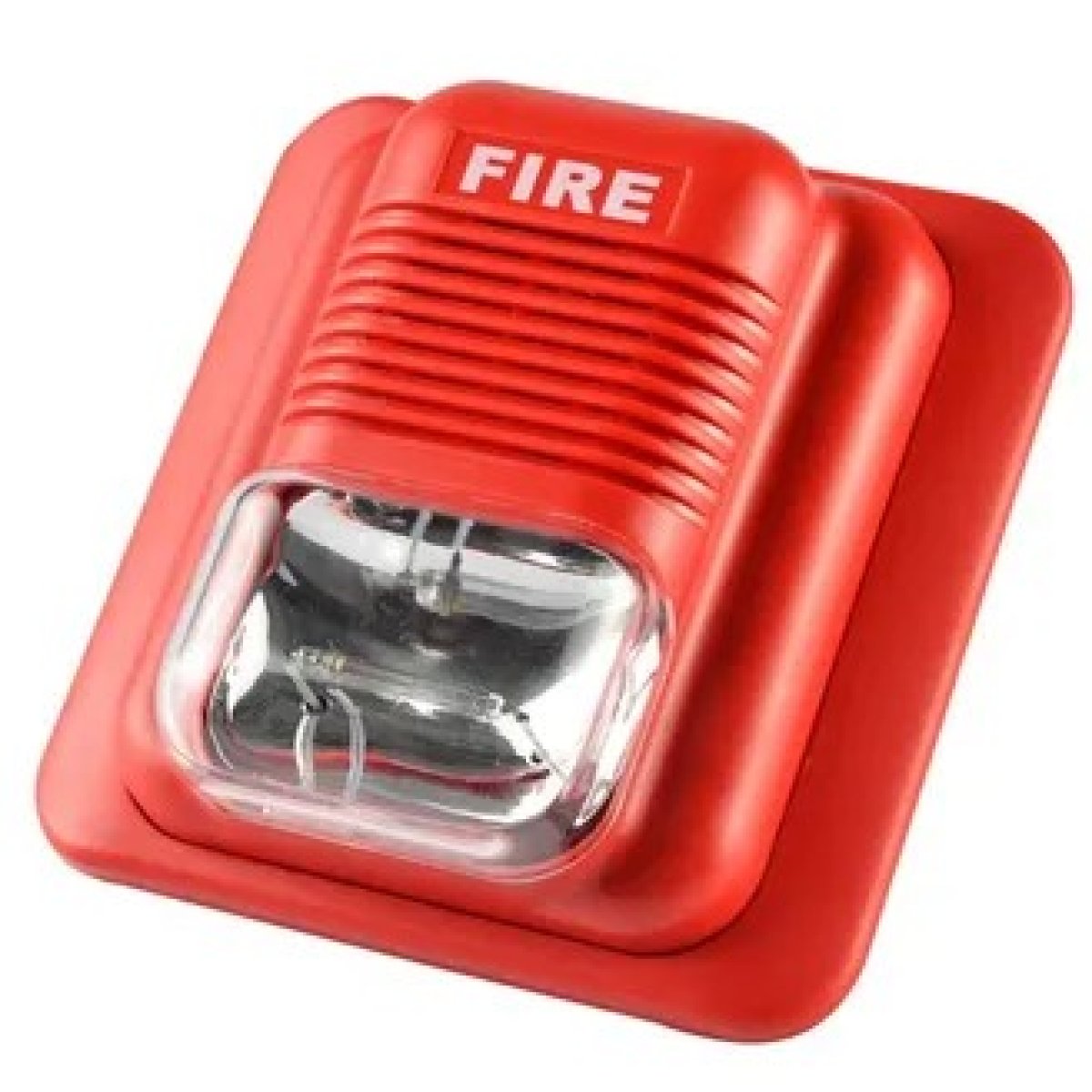

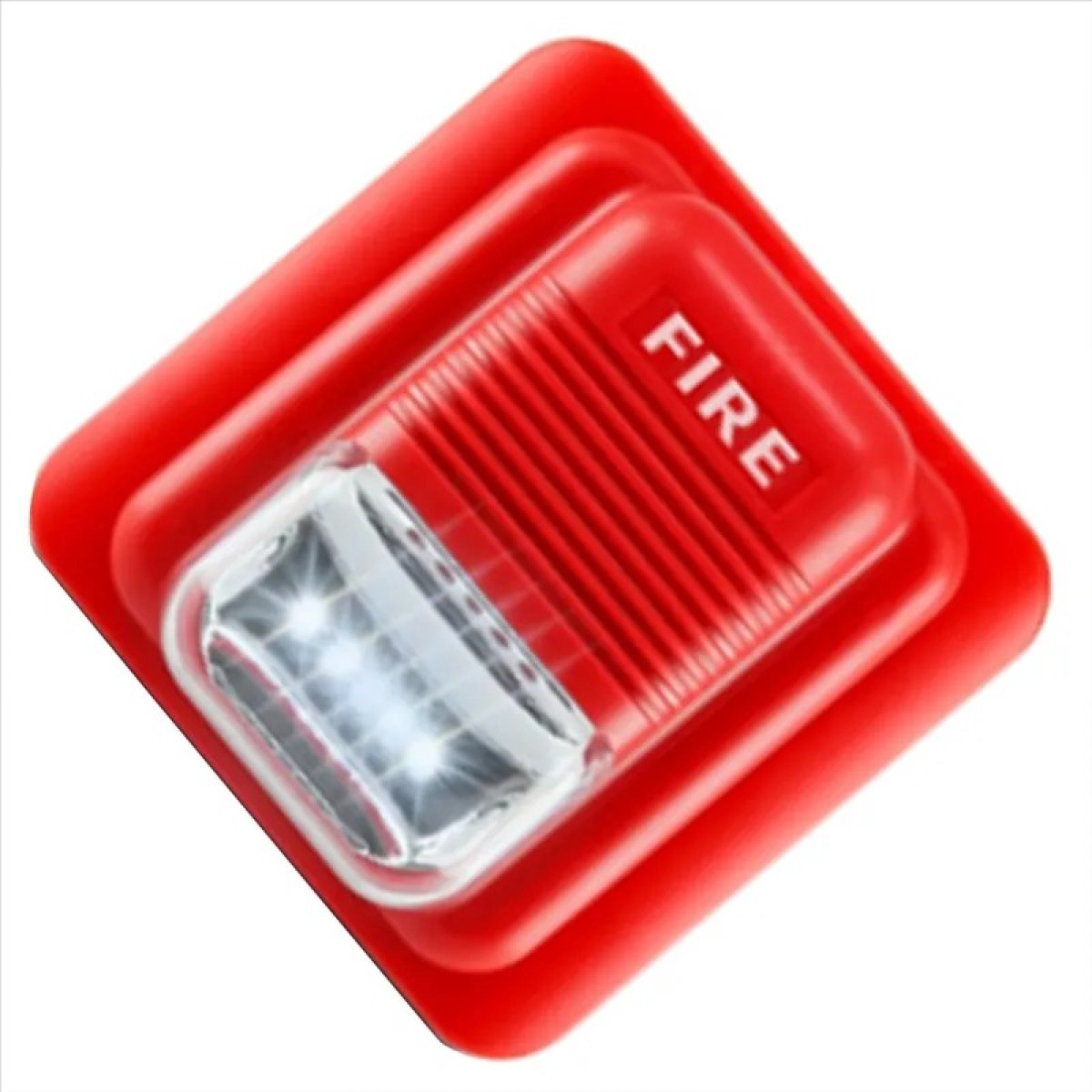

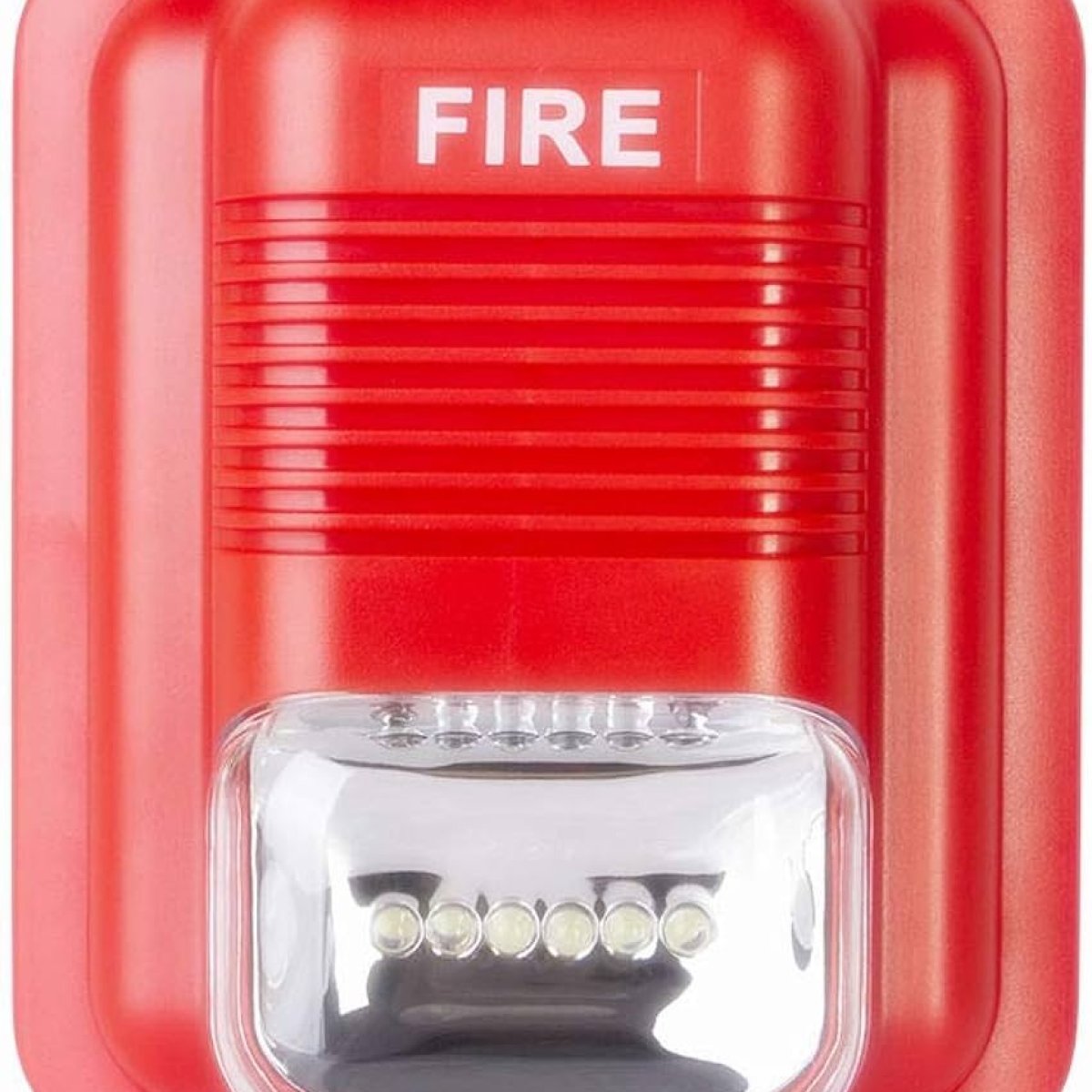

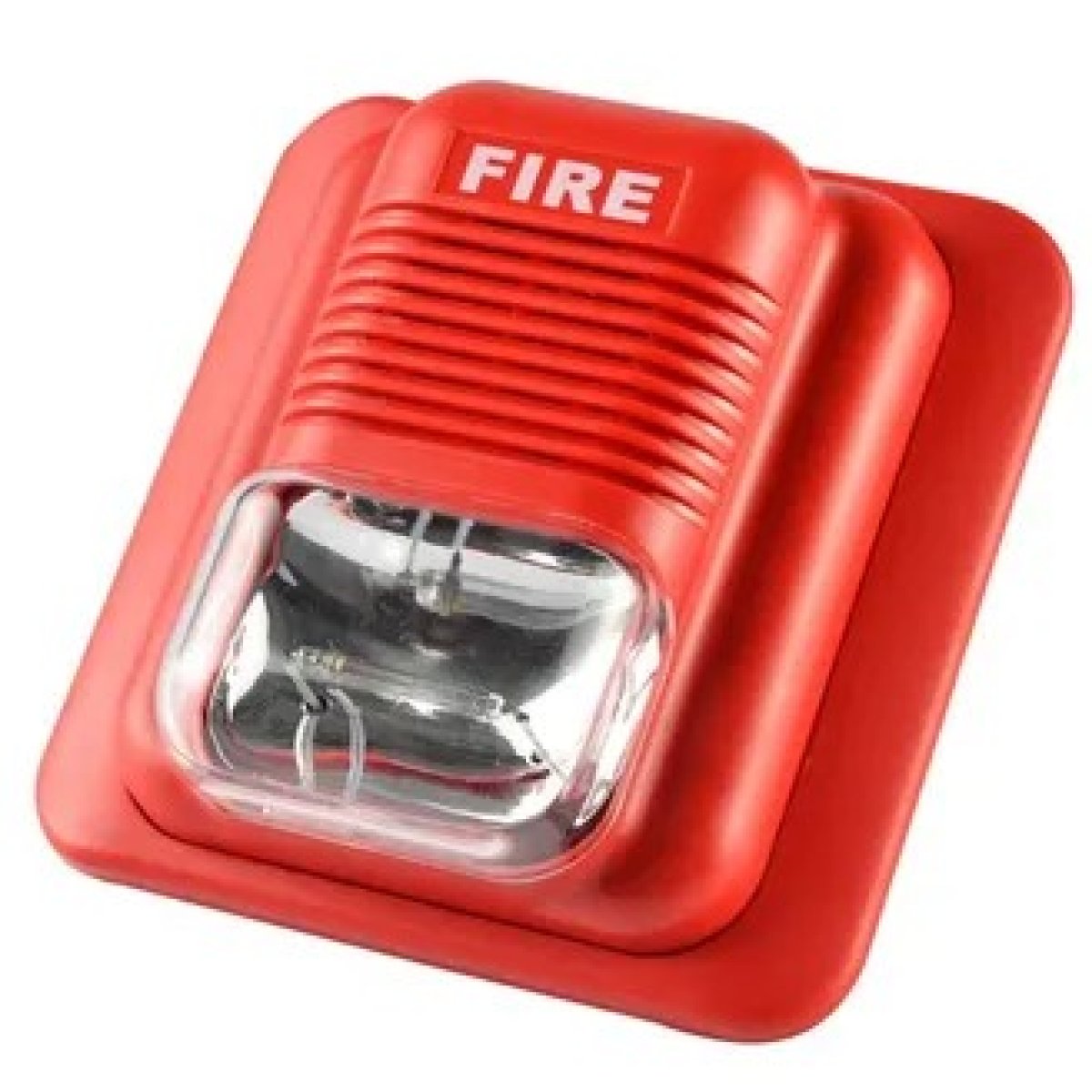

Electronic Multi-Tone Fire Alarm Siren (Sounder / Beacon Strobe)

Multi-Tone Audible and Visual Synchronization for Dynamic Evacuations

In large mechanical rooms, chemical warehouses, public transport hubs, and open-plan manufacturing plants, ambient noise floors fluctuate rapidly. Unlike traditional mechanical bells that output a single fixed frequency, an Electronic Fire Alarm Siren (often referred to in engineering specs as an Electronic Sounder) relies on solid-state acoustic generation to cut through specific industrial noise profiles. It can step through multiple programmed tone patterns—such as the rapid sweeping tones used for fire evacuations, continuous tones for hazardous chemical alerts, or pulse tones for security breaches.

The siren operates entirely on solid-state electronics, pairing a high-efficiency piezo element or a compression driver with a custom-engineered acoustic horn. This horn amplifies the sound waves, throwing a directional or omnidirectional high-decibel alert field while consuming significantly less current than old motor-driven sirens.

To satisfy modern NFPA 72 and ADA (Americans with Disabilities Act) safety mandates, the device features an integrated, high-intensity LED strobe beacon. This visual element provides a clear warning for hearing-impaired occupants or personnel wearing thick, sound-attenuating earmuffs on factory floors, ensuring a universal warning during building crises.

Core Tone Configuration Profiles

Modern electronic sirens feature internal DIP switches that allow field technicians to choose from up to 32 different international alert tones. The three most common configurations include:

1. The Temporal 3 (T3) Evacuation Pattern

• Standard Life-Safety Alert: Outfitted with a standardized three-pulse acoustic sequence (0.5s on, 0.5s off, 0.5s on, 0.5s off, 0.5s on, 1.5s off).

• Best For: Code-compliant building evacuations under NFPA guidelines, immediately identifying the emergency specifically as a fire breakout.

2. Continuous / High-Frequency Whine

• The Process Warning: A steady, unshifting high-frequency frequency wave designed to cut beneath low-frequency diesel engines.

• Best For: Industrial plant plant floors, automated conveyor lines, and machinery rooms.

3. Slow/Fast Frequency Sweeping (Whoop Tone)

• High-Urgency Alert: Continuously sweeps from low to high frequencies ($800\text{ Hz to }970\text{ Hz}$). This cycling sound signature prevents the human brain from acclimating to the noise, maintaining maximum urgency.

• Best For: Sprawling logistics yards, multi-level parking blocks, and open outdoor assembly docks.

Key Performance Features

• Synchronized LED Strobe Array: Outfitted with a high-intensity, synchronized xenon or solid-state LED flashing beacon (selectable from 15cd up to 110cd intensities), fully compliant with ADA visual signaling rules.

• Low-Current Draw Optimization: Advanced electronics keep the operating current down to 15 to 35 mA (sounder only), minimizing voltage drop across long notification appliance circuits (NAC).

• Robust Weatherproof Engineering: Available inside a heavy-duty, UV-stabilized polycarbonate shell paired with a Neoprene seal, raising the unit's rating to NEMA 4X / IP65 for outdoor wet environments and wash-down yards.

• Integrated Line Supervision Diode: Features an internal polarized diode interface, allowing the central fire control panel to run continuous reverse-polarity circuit checks to verify wiring integrity.

• Full Code Compliance and Testing: Manufactured, tested, and certified to meet UL 464 (Audible Signaling) and UL 1971 (Visual Signaling Devices for the Hearing Impaired).

Ideal Infrastructure Applications

• Petrochemical and Chemical Warehouse Facilities: Deployed inside heavy processing spaces where ambient machinery rumble exceeds 85 dBA.

• Sprawling Logistics Hubs & Freight Depots: Deployed across high overhead ceilings to throw omnidirectional alert sweeps down long racking corridors.

• Commercial Data Centers & Power Plant Vaults: Using low-current, high-efficiency strobe alerts to penetrate noisy server aisle cold-containment grids.

Technical Performance MatrixEngineering Metric ParameterStandard Indoor Sounder/StrobeHeavy-Duty Weatherproof Industrial SirenPeak Acoustic Output (at 1 Meter)95 to 102 dBA (Tone configuration dependent)110 to 115+ dBA high-output horn driveVisual Strobe Candela (cd)Selectable Slider: 15 / 30 / 75 / 110 cdHigh-Intensity 110 / 177 cd Fixed Flash ArrayStandard Input Voltage24V DC Polarized Operating Input (NAC Loop)24V DC / 120V AC Utility Power OptionsStandby/Operating Current$\le 35\text{ mA}$ average under dual load$\le 150\text{ mA}$ high-output draw under loadInternal Tone Options32 Distinct Selectable International Patterns32 Distinct Selectable International PatternsEnclosure Material BaseImpact-Resistant ABS Polymer CaseUV-Stabilized Polycarbonate / Die-Cast MetalIngress Protection RatingIP42 Standard Semi-Sealed BaseIP65 / NEMA 4X Weatherproof StandardCompliance CertificationsUL 464 / UL 1971 Listed / CE ApprovedUL 464 / UL 1971 / ATEX Hazardous OptionalStandard Procurement Package Components

• High-Output Multi-Tone Electronic Siren Core Assembly

• Integrated High-Intensity Synchronized Strobe Module and Clear Cover Lens

• Universal Surface/Flush Mounting Plate Adaptor Box Bracket

• Technical Wiring Configuration Manual and DIP-Switch Tone Assignment Log

• Optional System Add-ons: Marine-Grade IP65 External Backboxes, Vandal-Resistant Steel Cage Guards, and Multi-Colored Strobe Lenses (Amber/Blue/Green for non-fire utility signaling) (Sold Separately based on final contract BOQ specs)
