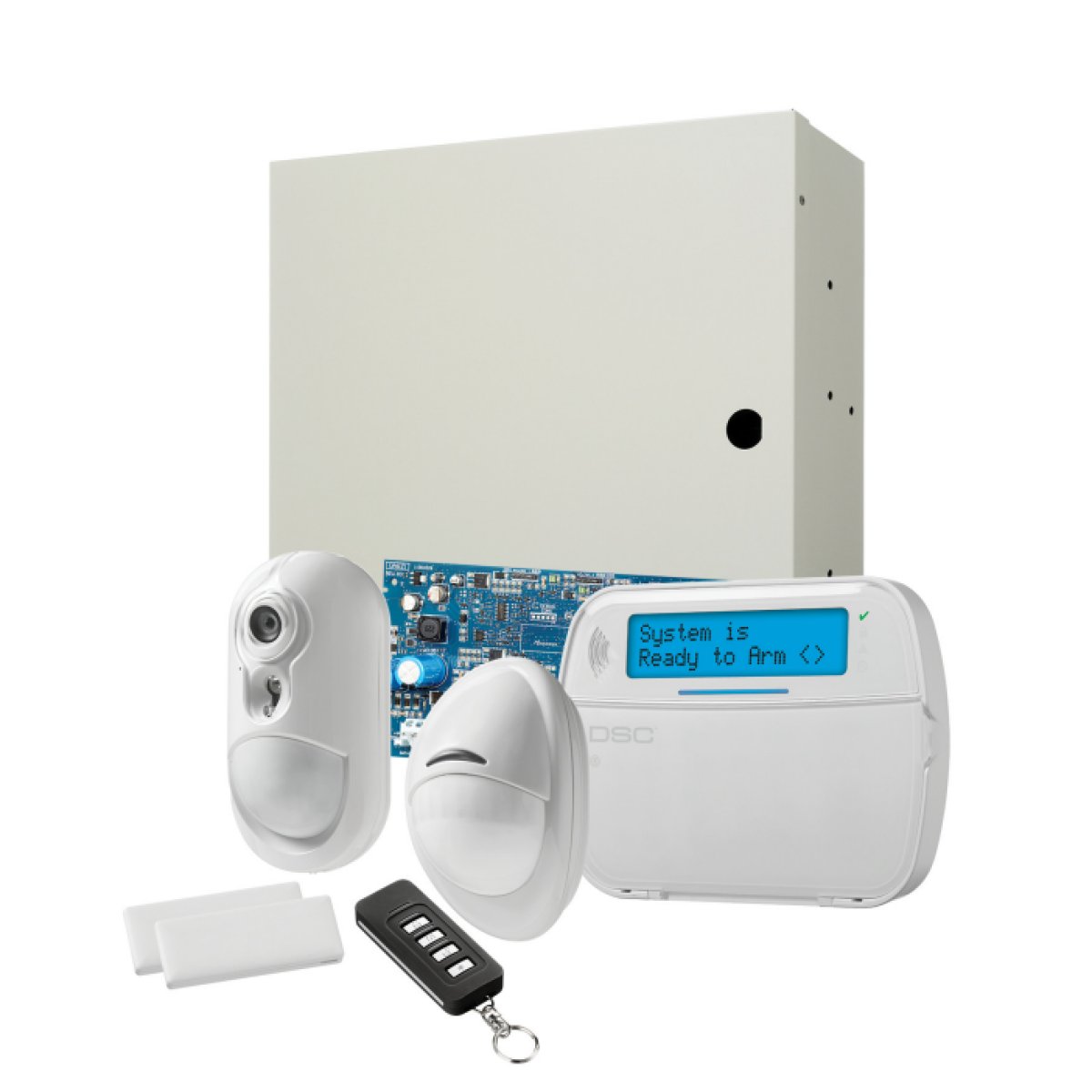

Enterprise-Grade 64-Zone Hybrid Duress and Intrusion Alarm Control Panel A high-performance, commercial-tier hybrid security control panel engineered to anchor complex duress, panic, and intrusion networks. Featuring 8 on-board zones expandable up to 64 wired or wireless zones, robust PowerG™ long-range encryption technology, and native dual-path IP/Cellular communications, this resilient panel delivers the instantaneous, tamper-proof signaling required for mission-critical life safety and panic alarm deployments.
Scalable, Fail-Safe Architecture for Critical Duress and Panic Networks
When a duress or silent panic event occurs in a high-risk environment—such as a bank teller window, a hospital reception desk, or a government office—the underlying security infrastructure must be absolutely flawless. The DSC PowerSeries Neo HS2064 is an industry-leading hybrid control hub engineered to combine the absolute reliability of hardwired security perimeters with the rapid scalability of advanced wireless deployment.
Housed in a heavy-duty, tamper-monitored steel enclosure, the HS2064 acts as the central brain for your facility's safety grid. It manages up to 64 distinct detection points, cleanly separating standard intrusion sensors from high-priority silent duress keys and under-counter panic buttons across 8 fully independent partitions. This ensures that emergency panic signals bypass localized system delays, instantly dispatching encrypted alerts to central monitoring stations and local command centers simultaneously.
Key Performance Features
Flexible 64-Zone Hybrid Expansion: Provides 8 hardwired on-board inputs, scaling seamlessly up to 64 total zones utilizing hardwired expansion modules or cutting-edge PowerG wireless transceivers.
Military-Grade PowerG™ Wireless Defense: Supports PowerG technology, utilizing 128-bit AES encryption and Frequency Hopping Spread Spectrum (FHSS) to prevent wireless signal jamming, hacking, or interception across long distances (up to 2km open-air range).
Multi-Tier Duress Protocol Support: Configurable for advanced duress features, including specialized keypad "Duress Codes" (which disarm the local sirens while sending a silent, high-priority ambush signal to police dispatch) and instant under-counter latching panic buttons.
8 Fully Independent System Partitions: Allows the facility to be split into 8 separate sub-networks, enabling individual office spaces, server rooms, or reception areas to be armed independently while keeping emergency panic zones active 24/7/365.
Dual-Path Encrypted Communications: Integrates smoothly with optional plug-and-play IP and LTE cellular communicators, ensuring backup transmission paths route emergency signals out instantly if phone lines are physically cut or internet networks drop.
Granular Event Log Memory: Features a massive internal non-volatile buffer capable of logging up to 500 historical events, ensuring precise forensic tracking of arming, disarming, sensor triggers, and system faults for security audits.
Programmable On-Board Outputs (PGM): Outfitted with 4 on-board programmable outputs (expandable up to 80), permitting direct integration with external physical hardware such as local strobe lights, lockdown doors, or silent relays feeding VMS servers.
Ideal Security Applications
Financial Institutions & Cash Hubs: Protecting bank tellers, vaults, and loan offices with a mix of silent under-counter panic buttons and dual-path central station reporting.
Healthcare & Emergency Facilities: Deploying wireless PowerG panic pendants to hospital staff, triage nurses, and psychiatric ward teams for immediate assistance.
Government & Corporate Properties: Providing clean zone segmentation across multi-tenant buildings, ensuring public-facing reception spaces feature active duress channels while interior offices remain standard zones.
Technical Specification MatrixEngineering MetricSpecification ProfileOn-Board Zones8 Hardwired InputsMaximum System CapacityUp to 64 Wired or Wireless ZonesSystem Partitions8 Fully Independent PartitionsUser Code CapacityUp to 500 Unique Programmable User CodesOn-Board Outputs4 PGM Outputs (Expandable up to 80)Wireless Transceiver FrequencyPowerG Technology (912–919 MHz / 433 MHz depending on region)Power Supply Transformer16.5 V AC / 40 VABattery Backup Support12 V DC Lead-Acid Gel Cell (7Ah or 14Ah Backup)Enclosure CompositionHeavy-Gauge Powder-Coated SPCC Steel with LockWhat's Included in the System Setup

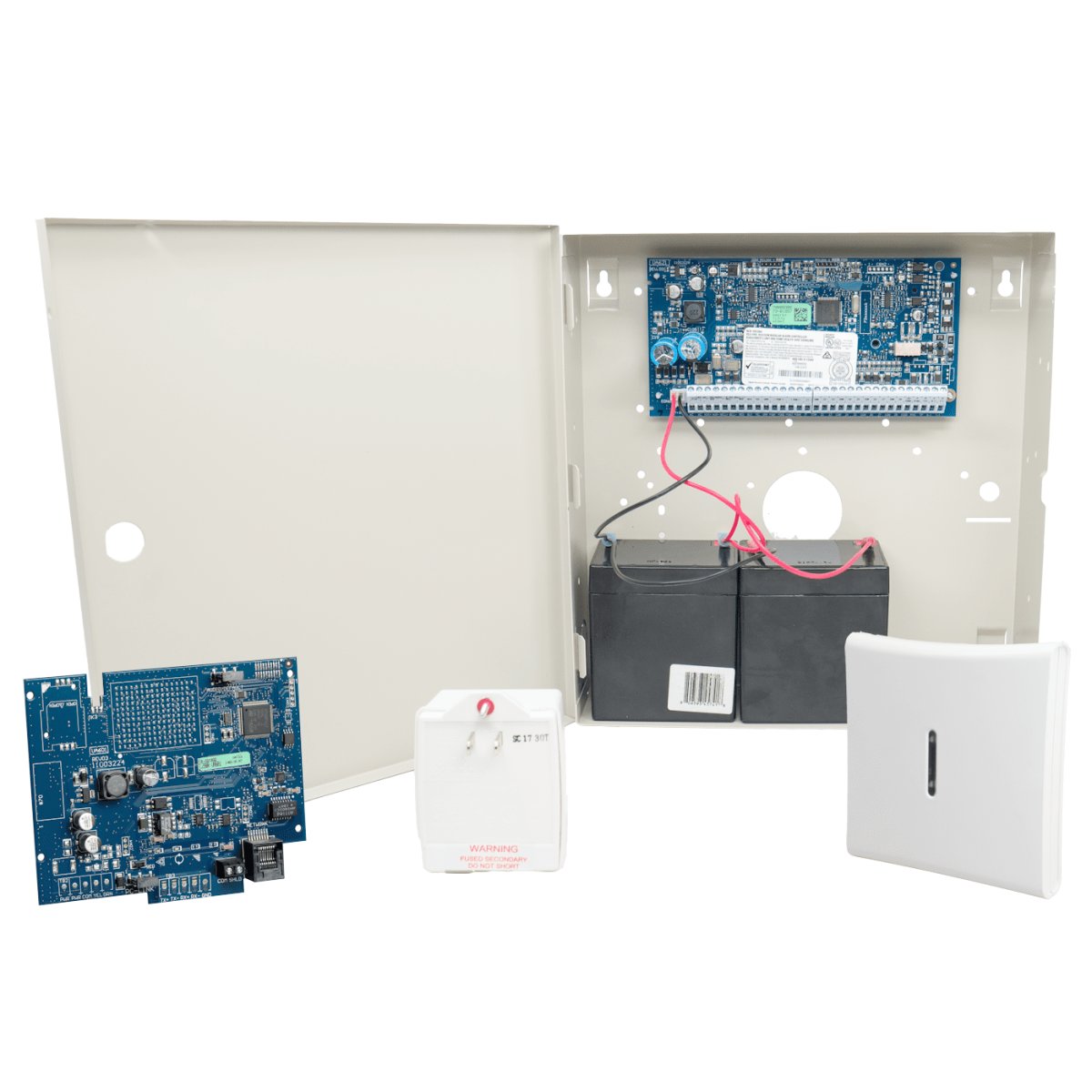

DSC PowerSeries Neo HS2064 Main Control Board
Heavy-Duty Steel Cabinet Enclosure with Integrated Tamper Switch
Zone End-of-Line (EOL) Resistor Pack
Battery Harness Wiring Kits
System Installation & Advanced Engineering Programming Manuals
Required for Field Operation: Keypad Interface, 16.5V Transformer, and Backup Battery (Sold Separately)
