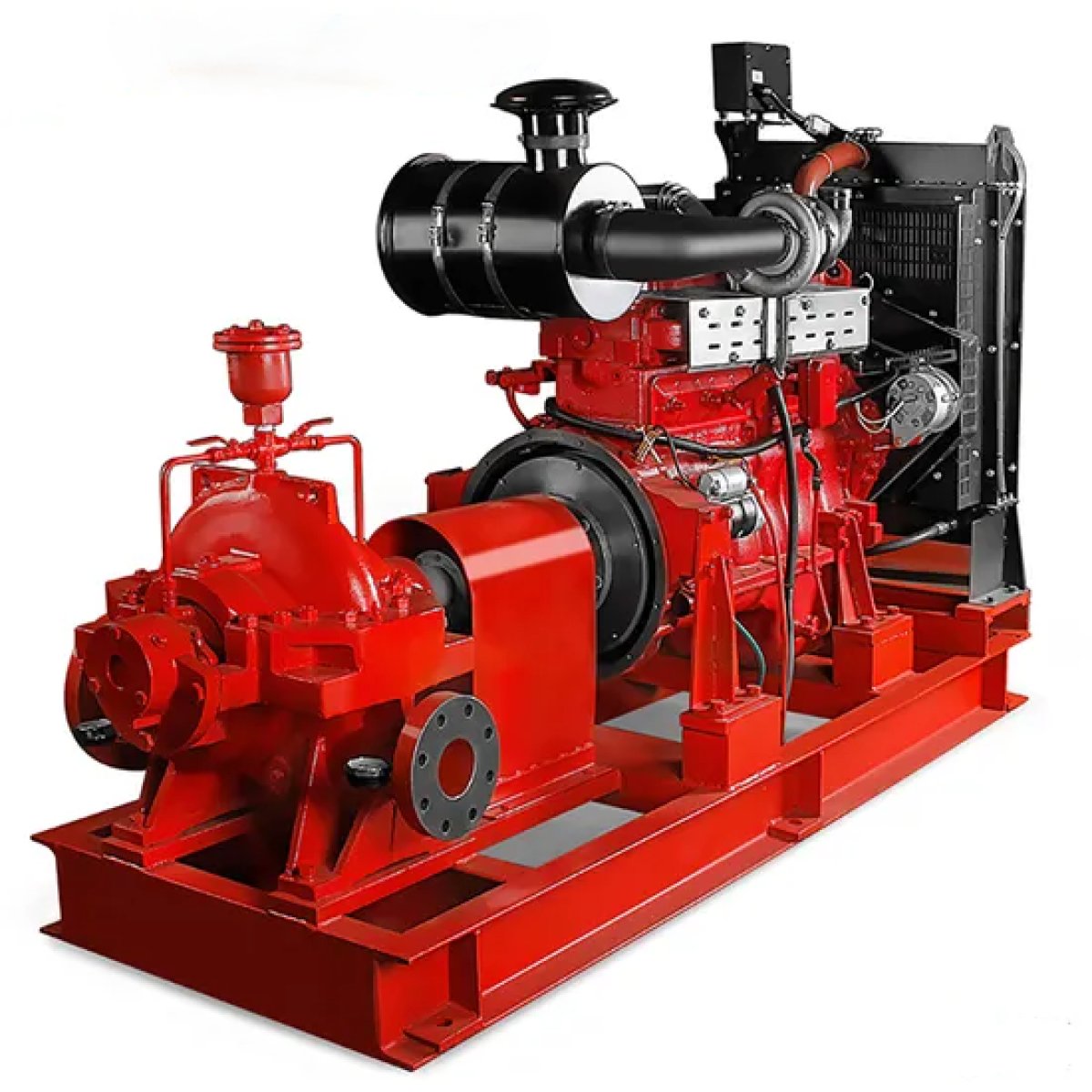

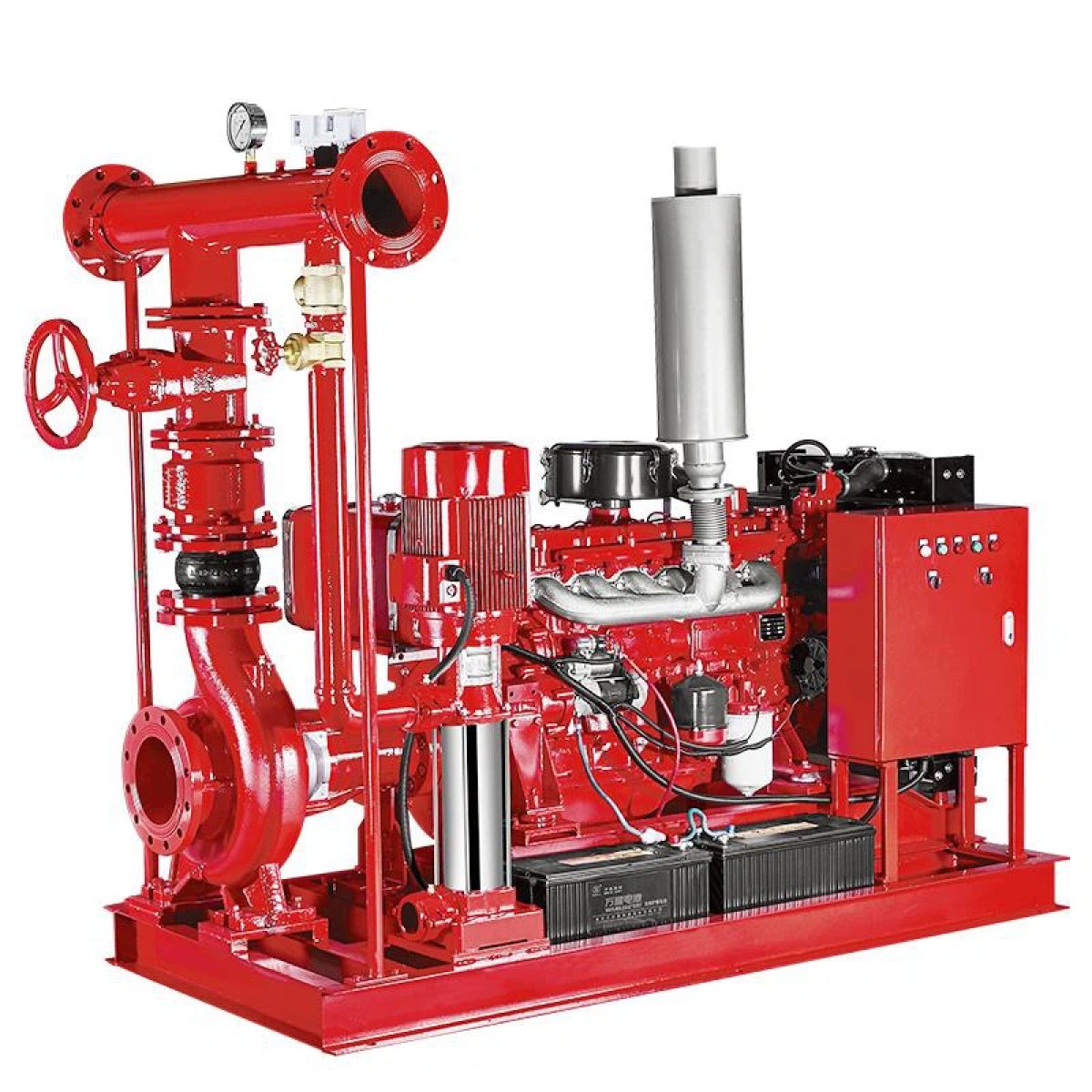

Diesel Engine-Driven Horizontal Split-Case Fire Pump System An autonomous, high-capacity fire suppression pump assembly powered by an industrial compression-ignition diesel engine. Engineered to operate independently of the facility's electrical grid, this heavy-duty horizontal split-case pump system guarantees critical water flow and high hydraulic pressure to sprinkler grids, deluge systems, and external yard hydrants during catastrophic structural fires, power blackouts, or grid failures.
Fail-Safe Hydraulic Protection Independent of Local Power Networks
During a major structural fire, facility electrical grids are frequently compromised—either deliberately cut by emergency responders for safety or knocked out by the fire itself. Relying solely on electric fire pumps leaves a building vulnerable during a total power failure. The Diesel Engine-Driven Fire Pump is the ultimate mechanical fail-safe, engineered to function completely decoupled from the building's electrical infrastructure.
Built strictly to NFPA 20 standards, this self-contained system utilizes a dedicated, heavy-duty industrial diesel engine coupled directly to a centrifugal pump (typically a Horizontal Split-Case layout). Because it features its own dual-cranking battery banks, mechanical fuel delivery lines, and an isolated engine cooling loop fed directly by the pump's water output, this system ensures high-velocity water delivery even if the entire facility loses power.
Core System Architecture & Components
A reliable diesel fire pump deployment requires an integrated ecosystem of rugged hardware:
1. The Centrifugal Pump (Horizontal Split-Case)
Double-Suction Impeller: Features a balanced dual-inflow design that minimizes axial hydraulic thrust, drastically reducing wear on the internal bearings and extending the pump's service life under continuous load.
Inline Pipe Maintenance: The casing splits horizontally, allowing field technicians to inspect internal wear rings, shafts, and impellers without disturbing the heavy suction or discharge flange piping.
2. The Specialized Diesel Engine Drive
Rapid Compression Ignition: Industrial-grade diesel power plant designed for quick-start reliability, coming up to full operating speed (~1450 to 3000 RPM) within 15 seconds of a pressure-drop signal.
Dual-Battery Electric Cranking: Equipped with two completely independent, redundant 12V or 24V starter motor battery banks (Lead-Acid or SMF). The engine controller automatically alternates between banks during a startup sequence to ensure activation even if one battery fails.
3. Integrated Engine Cooling Loop
Heat Exchanger Assembly: Instead of a standard air radiator (which can easily choke on smoke or hot engine-room air), the system bleeds a small percentage of pressurized water directly from the pump discharge through a cooling loop to regulate engine block temperatures before draining it away.
4. Dedicated NFPA 20 Digital Controller Panel
Continuous System Supervision: Monitors engine oil pressure, coolant temperature, engine speed (RPM), battery charge states, and fuel levels. It features an automated periodic test-timer mode to run weekly self-diagnostic operational checks.
Key Performance Features
Rigid Structural Steel Skid Base: The entire engine, drive shaft, flexible coupling, and pump assembly are factory-aligned and bolted onto a heavy, reinforced steel skid plate, ensuring perfect laser alignment and minimizing operational vibration.
Industrial Fuel Storage Network: Paired with a heavy-gauge steel fuel tank sized strictly to NFPA 20 rules, providing at least 1 gallon of fuel capacity per horsepower of engine rating, plus a 10% reserve, ensuring a minimum of 8 hours of continuous full-load operation.
Automated Speed Overspeed Protection: Equipped with an automated electronic overspeed shutdown switch that isolates the engine if an accidental governor failure drops load and threatens to over-rev the pump core.
Flexible Exhaust Silencer System: Includes a heavy-duty industrial or residential-grade exhaust silencer and flexible stainless steel bellows to isolate engine vibration from structural exhaust piping.
Ideal Infrastructure Applications
Expansive Industrial & Logistics Hubs: Supplying raw water volume to high-density ESFR sprinkler lines protecting large manufacturing or fulfillment centers.
Petrochemical & Oil Storage Refineries: Driving high-velocity foam or deluge systems where electrical infrastructure is highly vulnerable to explosive damage.
Offshore Platforms & Marine Ports: Pulling water directly from reservoirs or open water sources to defend high-value maritime cargo arrays.
Engineering Design & Technical MatrixEngineering MetricSpecification Profile RangeRated Flow Capacity500 GPM up to 5,000+ GPM (Gallons Per Minute)Rated Head Pressure50 PSI up to 300+ PSI (System Design Dependent)Engine Ignition ConfigurationDirect Injection, Compression Ignition DieselCranking Voltage ArrayRedundant Dual-Bank 12 V DC or 24 V DC NetworksAspiration ProfileNaturally Aspirated, Turbocharged, or IntercooledPump Casing MetallurgyDuctile Iron (ASTM A536) / Cast Bronze OptionsShaft Sealing ConfigurationPTFE Graphite Braided Packing Gland / Mechanical SealsSystem CertificationsNFPA 20, UL Listed, FM ApprovedStandard Procurement Package Components
Diesel Engine & Centrifugal Pump Assembly (Pre-aligned on Structural Skid)
Dedicated NFPA 20 Engine Controller Enclosure (NEMA 2 / Type 12)
Industrial Double-Wall Fuel Storage Tank with Sight Gauge and Low-Level Switch
Dual-Bank Heavy-Duty Backup Starter Batteries with Rack & Leads
Engine Heat Exchanger Cooling Loop Piping Assembly (Pre-plumbed)
Exhaust Silencer Muffler & Flexible Stainless Steel Connector Pipe
Optional System Add-ons: Main Flow Meter Loop, Suction Eccentric Reducer, and Discharge Waste Cone Fittings (Sold Separately)
