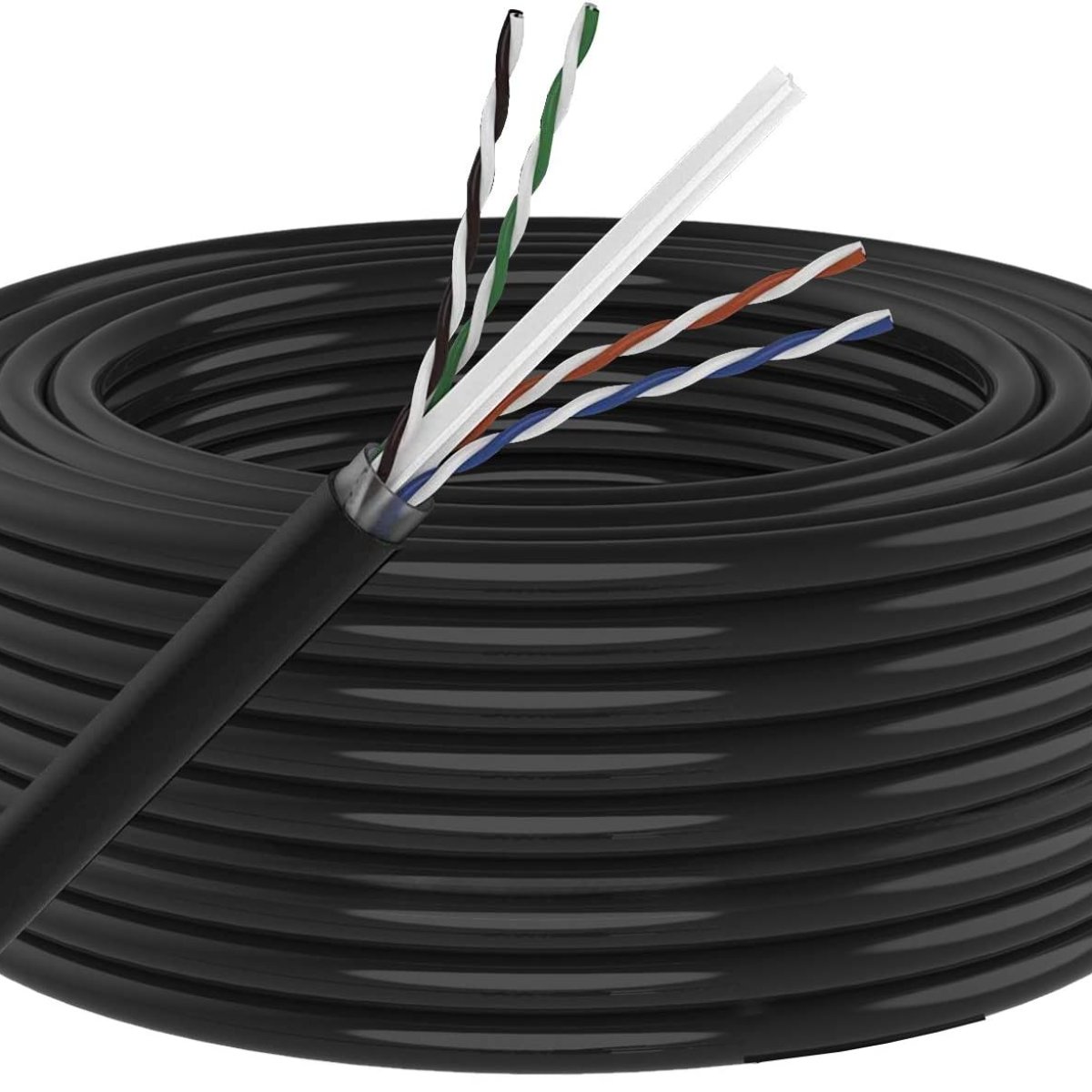

Premium Outdoor Shielded Cat6A Trunk Cable with Weatherproof PE Jacket An enterprise-grade, ruggedized Category 6A network cable engineered for high-performance external runs and direct-burial data backbones. Featuring a dense overall shield, 23 AWG solid copper conductors, and a UV-resistant, moisture-proof Polyethylene (PE) outer jacket, this robust cable effortlessly delivers 10 Gigabit Ethernet (10GBASE-T) speeds at distances up to 328 feet (100 meters) while actively isolating data lines from harsh environmental moisture, physical crushing, and extreme electromagnetic interference (EMI).
High-Bandwidth 10GbE Architecture Built for Harsh Outdoor Environments
Connecting high-altitude edge devices—such as long-range PTZ cameras, thermal perimeter sensors, or building-to-building wireless bridges—requires a physical layer that can handle massive data throughput while braving extreme environmental stress. Standard indoor network lines degrade rapidly when exposed to moisture, solar heat, or freezing winds.
Our Premium Outdoor Cat6A Shielded Cable is engineered from the ground up to eliminate these physical boundaries. Operating at bandwidth frequencies up to 500 MHz, it provides an ultra-wide pipe for zero-latency 10GbE video streams and core aggregation connections. Encased in a heavy-duty, weather-hardened outer skin, it maintains pristine signal integrity through scorching summer heatwaves, winter freezes, and saturated underground conduit paths.
Key Performance Features
True 10GbE Speed and 500 MHz Bandwidth: Guarantees stable transmission speeds up to 10 Gigabits per second over full 100-meter channels, preventing network choke points when routing multi-camera 4K visual loops.
Weather-Hardened UV-Resistant PE Jacket: Wrapped in an industrial-grade Polyethylene (PE) outer sheath that resists long-term solar UV cracking, brittle winter fractures, animal gnawing, and chemical degradation from soil minerals.
Dual-Layer Foil & Braid Shielding: Utilizing high-spec S/FTP or F/UTP architecture to wrap the internal pairs in a protective aluminum shield. This setup drains away high-voltage cross-talk caused by neighboring electrical lines, radio towers, and industrial machinery.
Solid 23 AWG Bare Copper Conductors: Built using 100% pure, solid bare copper wires rather than cheaper Copper Clad Aluminum (CCA). This architecture delivers minimum loop resistance and optimal electrical flow for demanding Power over Ethernet (PoE, PoE+, and High-Power PoE) applications.
Internal Spline Pair Separator: Features a molded interior HDPE cross-spline that physically isolates the four twisted pairs from one another, stabilizing the cable's internal geometry and eliminating Near-End Crosstalk (NEXT).
Direct Burial & Liquid Barrier Ready: Formulated to resist continuous moisture immersion, making the cable fully rated for pulling through flooded underground conduit paths or direct-burial deployment in sandy/gravel trench lines.
Ideal Infrastructure Applications
External Security Sub-stations: Powering and routing data lines down high utility columns to feed heavy-duty PTZ domes, multi-sensor cameras, and bispectral thermal units.
Inter-Building Data Links: Creating a rugged, cost-effective copper backbone between separate campus buildings, logistics warehouses, or field offices.
Outdoor Wireless & IoT Cells: Supplying high-throughput network connectivity to external Wi-Fi 7 access points, cellular repeaters, and localized access control columns.
Technical Performance MatrixEngineering MetricSpecification ProfileCable ClassificationCategory 6A (Cat6A ISO/IEC 11801 Compliant)Internal ConstructionF/UTP (Foiled) or S/FTP (Shielded/Foiled)Conductor Dimension23 AWG Solid Bare Copper (100% Purity)Frequency Threshold500 MHz Rated PerformanceMax Data Rate Capacity10 Gbps (10GBASE-T) up to 100 MetersOuter Jacket CompoundBlack Waterproof, UV-Stabilized Polyethylene (PE)PoE CompatibilityFully Rated for IEEE 802.3af/at/bt (Type 1 to Type 4 PoE)Packaging Options & Deployment Recommendations
Available on Heavy-Duty 1,000-Foot (305-Meter) Wooden Dispensing Spools.
Note: To maintain full environmental and EMI defense loops, always terminate this cable with premium shielded outdoor-rated Cat6A RJ45 pass-through connectors or grounded field-termination plugs.
